ITEM NO. Description Part Number Quantity 1 1” BSP – 17 JIC Elbow ZP 208-2-0059 3 2 Lubrication Hose Assy: Actuator to Pump SAPH-017 1 3 Lubrication Hose Assy: Actuator to Pump SAPH-016 1 4 1/8” Hex Head Plug Stainless Steel 202-6-0005 3 5 Sight Glass 500-21-0016 2 6 Lubrication Hose Assy: HE to Actuator SAPH-019 1 7 Cooling Hose Assy: HE to Drain SAPH-002 1 8 Lubrication Hose Assy: Filters to HE SAPH-010 1
Описание

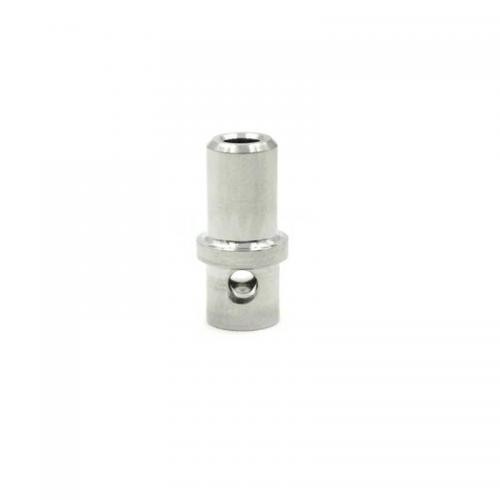

500-20-0113 HP Выходной клапан, детали для гидроабразивного насоса-усилителя в Австралии
ITEM NO. Description Part Number Quantity 1 1” BSP – 17 JIC Elbow ZP 208-2-0059 3 2 Lubrication Hose Assy: Actuator to Pump SAPH-017 1 3 Lubrication Hose Assy: Actuator to Pump SAPH-016 1 4 1/8” Hex Head Plug Stainless Steel 202-6-0005 3 5 Sight Glass 500-21-0016 2 6 Lubrication Hose Assy: HE to Actuator SAPH-019 1 7 Cooling Hose Assy: HE to Drain SAPH-002 1 8 Lubrication Hose Assy: Filters to HE SAPH-010 1
| ITEM NO. | DESCRIPTION | PART NO | QTY. |
| 1 | Inverter GA700 400V 3PH 37Kw Prepared | 700-50072P | 1 |
| 2 | GA700 Adapter Plate - 37kW | SAP-G4-77 | 1 |
| 3 | Gland 40MM NICKEL-PLATED BRASS | 8-00-10-0008 | 1 |
| 4 | Gland 32MM Nylon | WJ0E1171 | 1 |
| 5 | Gland 20MM Nylon | WJ0E1206 | 8 |
| 6 | Earth Bar 10 Hole 90A | 700-10-0025 | 1 |
| 7 | Miniature CB 1P 4A 6KA | 700-3-0037 | 1 |
| 8 | Power Supply 120W 24V | 700-5-0005 | 1 |
| 9 | Circuit Breaker 3Pole 10A | 700-3-0098 | 1 |
| 10 | Main Isolator Switch CB80A | 700-3-0012 | 1 |
| 11 | ESP Control Module | ESP-CM-06 | 1 |
| 12 | Motor CB1.6-2.5A | 700-3-0092 | 2 |
| 12 | Module Direct Motor Starter | 700-3-0095 | 2 |
| 13 | Contactor 24DC | 700-3-0096 | 2 |
| 14 | Filter RFI 75A | 700-3-0021 | 1 |
| 15 | 3 Phase Surge Suppressor | 700-3-0097 | 2 |
| 16 | Isolator Switch Handle | 700-3-0019 | 1 |
| 17 | Gland 25MM Nylon | WJ0E1180 | 1 |
| 18 | Regen Resistor C/W Temp Switch | 700-3-0062A | 1 |
| 19 | Cabinet Key | 700-4-0019 | 1 |
| 20 | Router Kit | SAP ZBT RTS-000-1 | 1 |
| 21 | PCB Assembly DSM | ESP-DSM-PCBA | 1 |
| 22 | HMI LCD Colour 800 X 480 | 700-2-0127 | 1 |
| NA | 40mm Nylon Gland | 700-10-0007 | 1 |
| 聽 | |||
| 聽 | |||
| ITEM NO. | DESCRIPTION | PART NUMBER | QTY. |
| 1 | Clamp ring | SP4-50 | 1 |
| 2 | M12x1.25x40 SHCS BLK | 110-1-1240 | 12 |
| 3 | Plunger | SP-46-3 | 1 |
| 4 | Internal Circlip | 501-1-0010 | 1 |
| 5 | O-ring | 500-5-0049 | 2 |
| 6 | O-ring | 500-5-0089 | 1 |
| 7 | Seal Housing | SP4-45-175 | 1 |
| 8 | Wiper Seal | SP1042 | 2 |
| 9 | Guide Bush | SP4-46-175 | 1 |
| 10 | M6 x 10 SHCS Black | 108-1-0610 | 1 |
| 11 | HP Seal Kit | SP1060 | 1 |
| 12 | Cylinder Liner | SP4-69-175 | 1 |
| 13 | Cylinder Body | SP-49-13 | 1 |
| 14 | Check Valve Housing | SP-72-7 | 1 |
| 15 | LP Check Valve Spring | 500-12-0040 | 1 |
| 16 | Check Valve Poppet | SP-73-2 | 1 |
| 17 | Sealing Head | SP-71-9 | 1 |
| 18 | O-Ring- BS033 | 500-5-0042 | 2 |
| 19 | Cylinder Retaining Sleeve | SP2-70-5 | 1 |
| 20 | Valve Seat | 500-20-0111 | 1 |
| 21 | Outlet Poppet | 500-20-0113 | 1 |
| 22 | Spring | 500-20-0112 | 1 |
| 23 | Check valve outer body | 500-20-0100 | 1 |
| 24 | O-ring | 500-5-0111 | 1 |
| 25 | End Cap Insert | SP4-125 | 1 |
| 26 | Clamp | SP4-126 | 3 |
| 27 | M6 x 12 SHCS Black | 108-1-0612 | 3 |
| NA | Collar | 10078715 | 1 |
| NA | Gland nut 3/8" | 10078129 | 1 |
| High Pressure Outlet Poppet Repair Kit | 500-20-0110 | ||
| 20 | Valve Seat | 500-20-0111 | 1 |
| 21 | Outlet poppet | 500-20-0113 | 1 |
| 22 | Spring | 500-20-0112 | 1 |
| Guide Bush Assembly Kit G4 | SP1120 | ||
| 5 | O-ring | 500-5-0049 | 2 |
| 6 | O-ring | 500-5-0089 | 1 |
| 7 | Seal Housing | SP4-45-175 | 1 |
| 8 | Wiper Seal | SP1042 | 2 |
| 9 | Guide Bush | SP4-46-175 | 1 |
